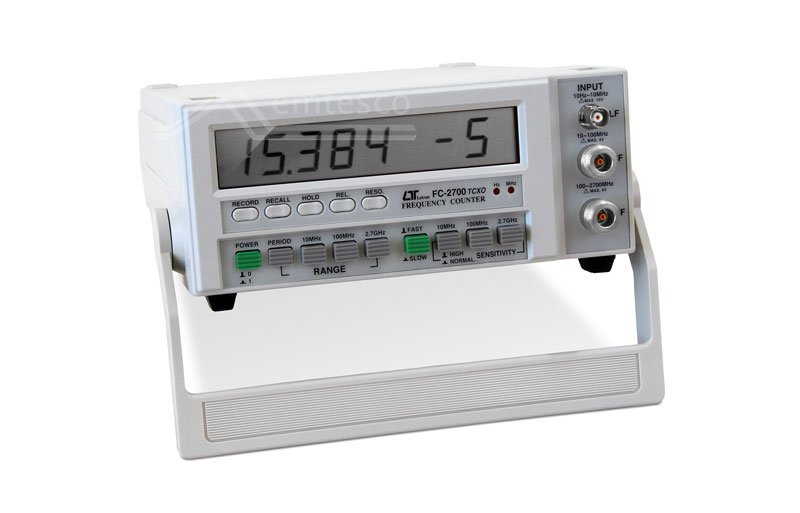

Frequency Counter is a low cost, high precision, low power device with optional computer interface (RS-232), data hold, data record and relative measurement capabilities. This unit is a microprocessor based bench-top tool with a large LCD display, battery powered piece of test equipment that is ideal for VHF, UHF and CB frequencies. The FC-2700 is lightweight, yet has a wide range of operation temperatures and humidities.
- TCXO (temperature compensated crystal oscillator) time base for high stability and accuracy
- High sensitivity for VHF and UHF frequency measurement
- 2.7 GHz frequency counter with four ranges for greater accuracy
- Battery powered with optional AC and DC adaptors
- Microprocessor controlled for:
- Frequency
- Period
- Multi resolution
- Data Hold
- Relative measurement
- Data record
- Optional RS-232 Interface
| General Specifications | |
|---|---|
| Frequency Range | 10 Hz ~ 2.7 GHz |
| Resolution | 0.1 Hz for 10 MHz range |
| Sensitivity | 50 mVrms on the 2.7 GHz scale |
| Stability vs Temperature | ± 1.5ppm + 1d (10 ~ 30 Celcius) |
| Frequency Accuracy | ±2 ppm + 1d |
| Time Base Circuit | 16.777216 MHz TCXO |
| Operating Temp | 0 ~ 50 Celcius (32 ~ 122 F) |
| Operating Humidity | < 80% |
| Power Supply | 6 AA batteries (9 VDC adapter optional) |
| Weight | 2.5 lbs // 1.2 Kg |
